Compact Connection Rotatory Filter Wastewater Bar Screen for thermal power project

Brand Name : CHENENG
Model Number : CXL
Certification : CE/ISO
Place of Origin : China
MOQ : 1pcs
Price : negotiation
Supply Ability : 20 pcs per month
Delivery Time : 15 working days after received your payment
Packaging Details : nude packing, bulk packed in wooden cases
Product Name : Rotatory Filter Screen
Application : Water Treatment
Material : CS Or SS
Standard : ISO
Structure : Compact Connection
Contact Now

CXL Rotatory Filter Screen Used in thermal power project

Application

■ It is used to block and remove the suspended matters and particle impurities with smaller diameters in the water supply system, commonly used in the water supply engineering in water works which consider surface water as the water source, and also the water drainage processing engineering, and can further figure out the contaminants in water sources after rough grille.


Advantages

■ The driving device adopts the cycloidal-pin wheel or gear-type speed reducer for direct driving, has low noise, compact structure and operates steadily;

■ The equipment has three intake methods: intake from the front side, intake from the external side and intake from the external side;

■ The equipment is easy to operate and it’s operation can be directly controlled locally/remotely;

■ To prevent accidental overload, the equipment is set with both the mechanical shear pin protection and also the overcurrent protection to ensure the safe and reliable operation of the equipment.


Model

Parameter

CXL-2000CXL-2500CXL-3000CXL-3500CXL-4000
Nominal Breadth of Filter Screen (mm)20002500300035004000
Trench Breadth (mm)21002600310036004100
Aperture Dimension a×a (mm)3×3,4×4,5×5,6×6,8×8,10×10
Installation Angle α (°)75~79
Installation Height (mm)5000-20000
Rotating Velocity of Filter Screen V (m/min)3.6-4.0
Over-net Flow Velocity (m/s)0.8
Motor Power (kw)2.2-4.03.0-5.54.0-7.5
Drag Chain Pitch (mm)600
The Maximum Inflow Velocity (m3/h)23503050375044005050
Permissible Water Level Difference (mm)200
Washing Nozzle Quantity2531374349
Washing Water Pressure (MPa)≥0.3
Washing Water Quantity (m3/h)90110135155175
Hoisting Weight of the Largest Assembly (kg)36503950425045505000
Hoisting Height of the Largest Assembly (m)3.0
Civil Engineering LoadP(KN)148.5158.5170.0180.0200.0
△P(KN)4.04.55.05.56.5


Product Tags:

water purification screening



rotary bar screen


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

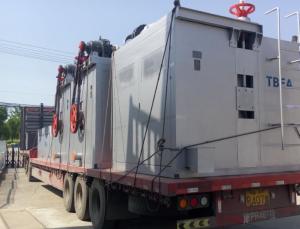

Compact Connection Rotatory Filter Wastewater Bar Screen for thermal power project Images
